| Kim-1

Hepatitis A virus cellular receptor 1 (HAVcr-1) also known as T-cell immunoglobulin and mucin domain 1 (TIM-1) is a protein encoded by the HAVCR1 gene. TIM genes belong to type I cell-surface glycoproteins, which include an N-terminal immunoglobulin (Ig)-like domain, a mucin domain with distinct length, a single transmembrane domain, and a C-terminal short cytoplasmic tail. The hepatitis A virus cellular receptor 1 (HAVCR1/TIM-1), is a member of the TIM (T cell transmembrane, immunoglobulin, and mucin) gene family, which plays critical roles in regulating immune cell activity especially regarding the host response to viral infection.


| Typical data

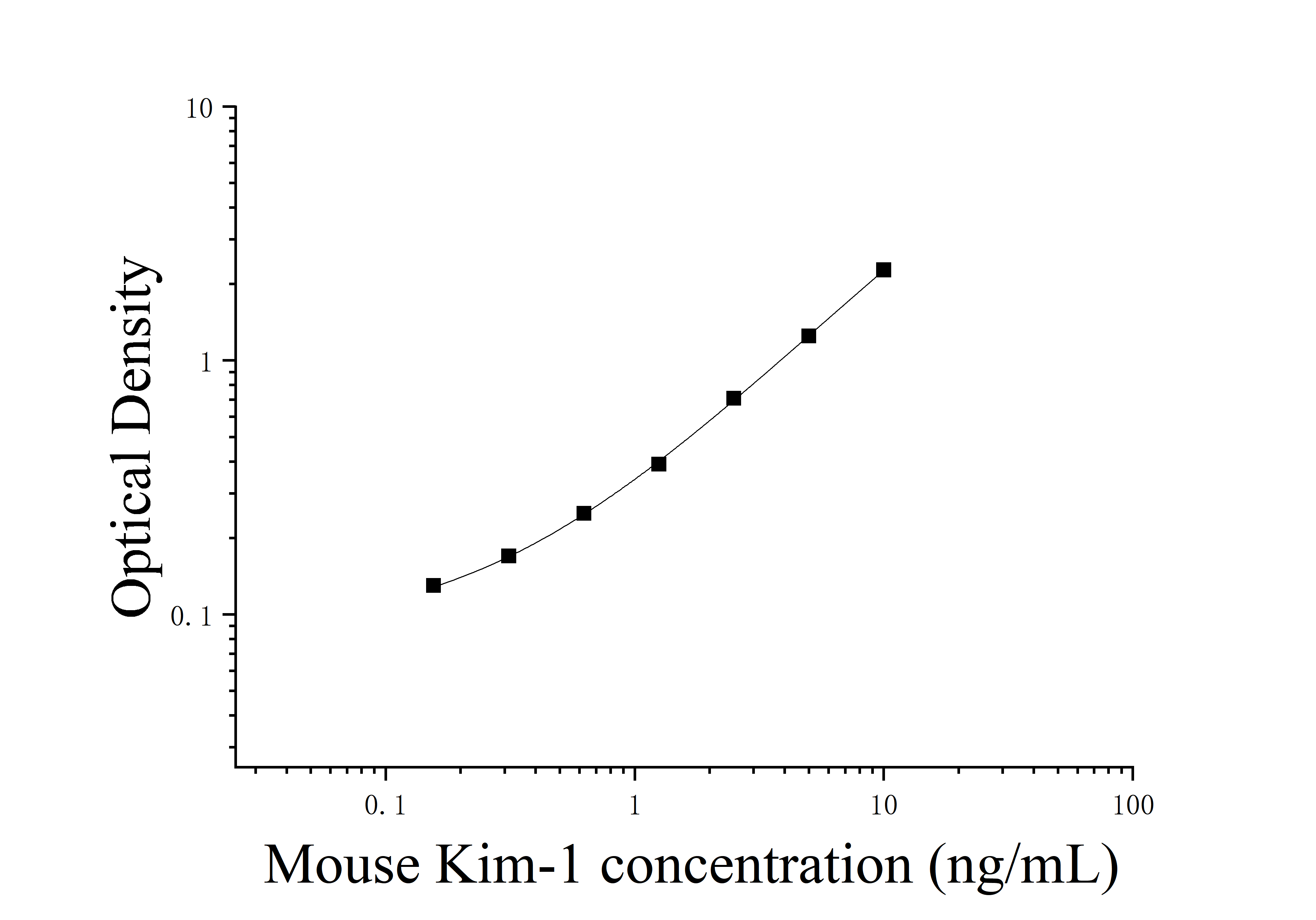

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, wash technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data are provided below for reference only.



Concentration (ng/mL)	10	5	2.5	1.25	0.625	0.312	0.156	0
OD	2.48	1.65	1.07	0.71	0.45	0.28	0.19	0.09
Corrected OD	2.39	1.56	0.98	0.62	0.36	0.19	0.1	-



| Repeatability

Intra-assay Precision (Precision within an assay)：CV% < 10%; Inter-assay Precision (Precision between assays)：CV% < 10%


| Recovery

The recovery of Mouse Kim-1 spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.



Sample Type	Range(%)	Average Recovery(%)
Serum(n=8)	84-101	96
Plasma(n=8)	92-105	102
Cell Culture Supernates(n=8)	96-108	105



| Linearity

Samples were spiked with high concentrations of Mouse Kim-1 and diluted with Universal Diluent to produce samples with values within the range of the assay.



		Serum(n=4)	Plasma(n=4)	Cell Culture Supernates(n=4)
1 : 2	Range (%)	84-95	88-96	90-110
	Average (%)	91	93	96
1 : 4	Range (%)	89-103	87-108	105-115
	Average (%)	94	98	108
