| SHH

Sonic hedgehog protein (SHH) is encoded for by the SHH gene.The protein is named after the video game character Sonic the Hedgehog.This signaling molecule is key in regulating embryonic morphogenesis in all animals. SHH controls organogenesis and the organization of the central nervous system, limbs, digits and many other parts of the body. Sonic hedgehog is a morphogen that patterns the developing embryo using a concentration gradient characterized by the French flag model. This model has a non-uniform distribution of SHH molecules which governs different cell fates according to concentration.


| Typical data

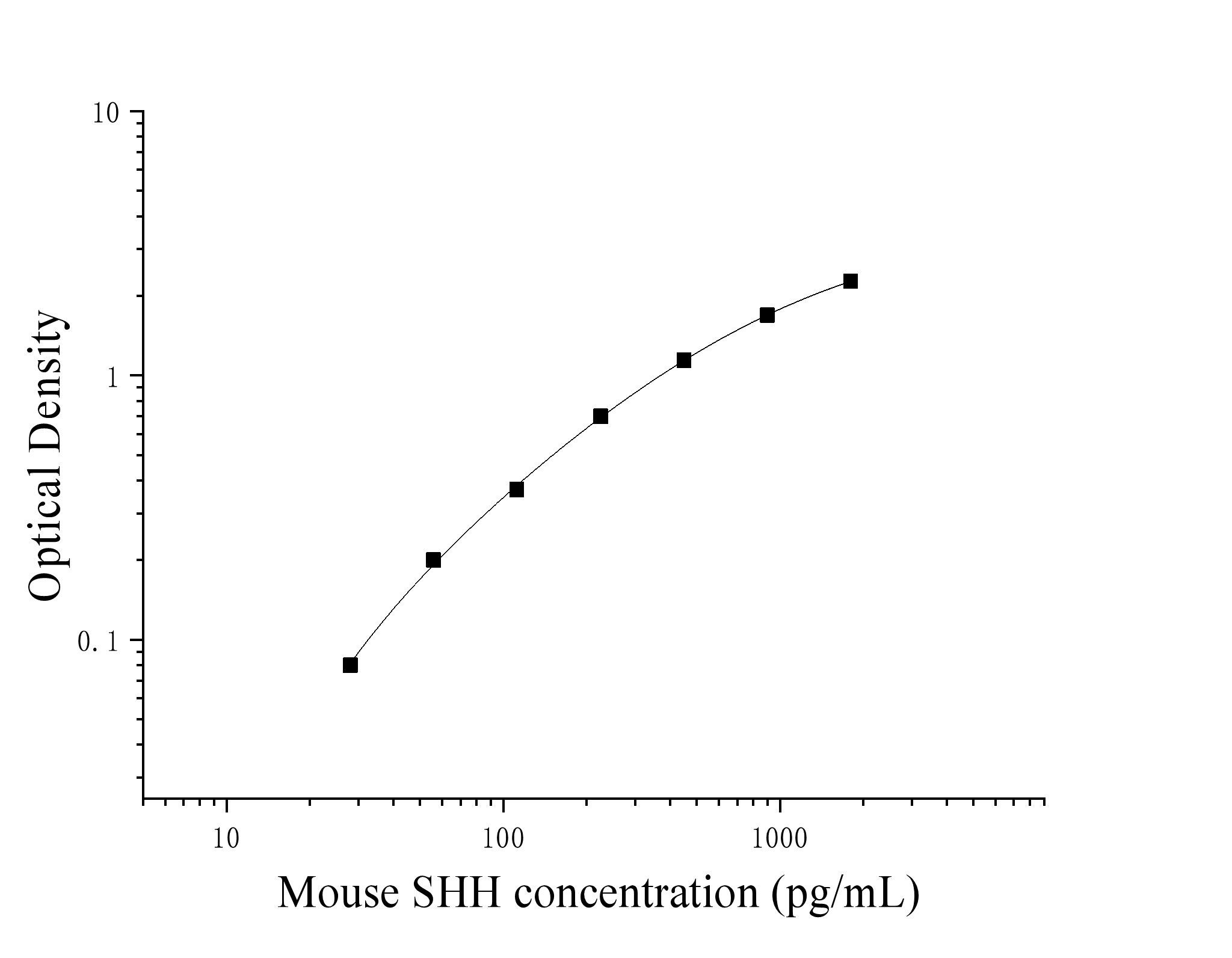

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, wash technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data are provided below for reference only.



Concentration (pg/mL)	1800	900	450	225	112	56	28	0
OD	2.36	1.78	1.23	0.79	0.46	0.29	0.17	0.09
Corrected OD	2.27	1.69	1.14	0.7	0.37	0.2	0.08	-



| Repeatability

Intra-assay Precision (Precision within an assay)：CV% < 10%; Inter-assay Precision (Precision between assays)：CV% < 10%


| Recovery

The recovery of Mouse SHH spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.



Sample Type	Range(%)	Average Recovery(%)
Tissue Homogenates(n=8)	84-101	96
Cell Lysates(n=8)	92-105	102



| Linearity

Samples were spiked with high concentrations of Mouse SHH and diluted with Universal Diluent to produce samples with values within the range of the assay.



		Tissue Homogenates(n=4)	Cell Lysates(n=4)
1 : 2	Range (%)	83-95	88-96
	Average (%)	91	93
1 : 4	Range (%)	89-103	87-108
	Average (%)	97	98
