| FAP

Fibroblast Activation Protein (FAP), also termed prolyl endopeptidase FAP, is a membrane-bound serine protease encoded by the FAP gene. The protein structure consists of: (1) an extremely short cytoplasmic N-terminal segment (6 amino acids), (2) a transmembrane domain (residues 7-26), and (3) a substantial extracellular portion containing both an α/β hydrolase domain and an eight-bladed β-propeller domain.


| Typical data

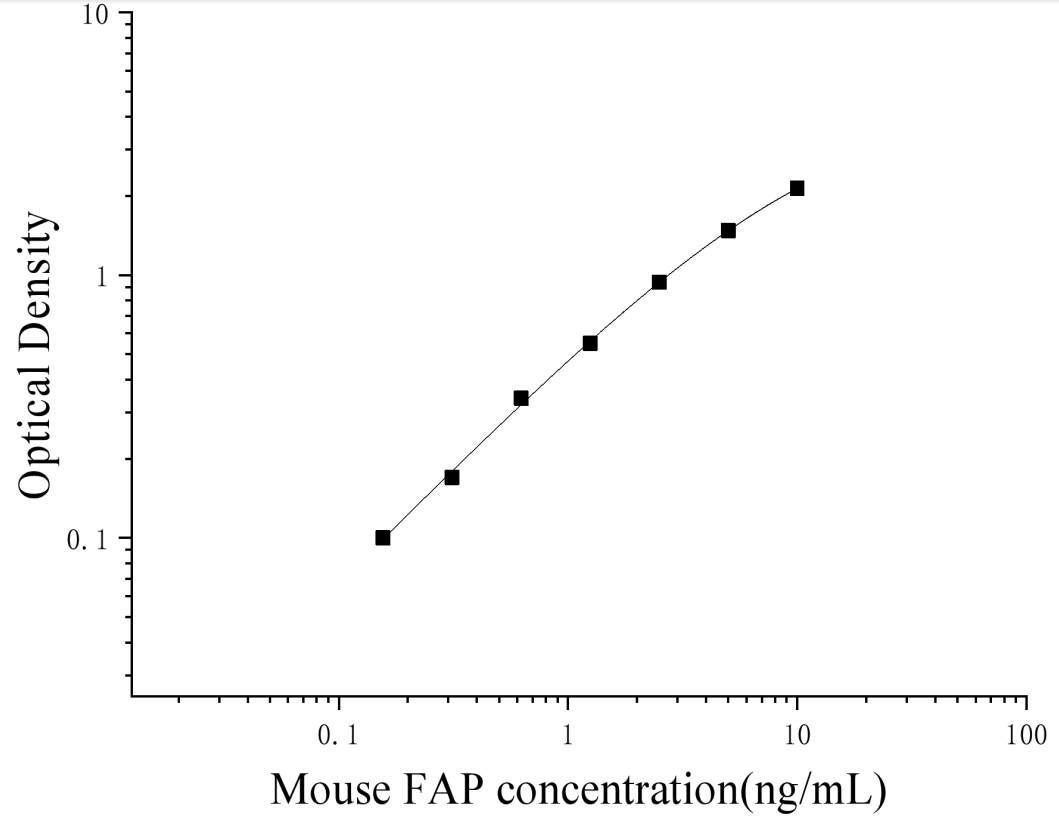

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, wash technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data are provided below for reference only.



Concentration (ng/mL)	10	5	2.5	1.25	0.625	0.312	0.156	0
OD	2.22	1.56	0.92	0.63	0.42	0.25	0.18	0.08
Corrected OD	2.14	1.48	0.84	0.55	0.34	0.17	0.1	-



| Repeatability

Intra-assay Precision (Precision within an assay)：CV% < 10%; Inter-assay Precision (Precision between assays)：CV% < 10%


| Recovery

The recovery of Mouse FAP spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.



Sample Type	Range(%)	Average Recovery(%)
Serum(n=8)	84-101	95
Plasma(n=8)	92-107	103
Cell Culture Supernates(n=8)	96-108	105



| Linearity

Samples were spiked with high concentrations of Mouse FAP and diluted with Universal Diluent to produce samples with values within the range of the assay.



		Serum(n=4)	Plasma(n=4)	Cell Culture Supernates(n=4)
1 : 2	Range (%)	84-95	88-95	90-110
	Average (%)	91	93	96
1 : 4	Range (%)	89-103	87-108	105-113
	Average (%)	94	98	107
