| PEN2

PSENEN, formally PEN-2 (presenilin enhancer 2), is a protein that is a regulatory component of the gamma secretase complex, a protease complex responsible for proteolysis of transmembrane proteins such as the Notch protein and amyloid precursor protein (APP). The gamma secretase complex consists of PEN-2, APH-1, nicastrin, and the catalytic subunit presenilin. PEN-2 is a 101-amino acid integral membrane protein likely with a topology such that both the N-terminus and the C-terminus face first the lumen of the endoplasmic reticulum and later the extracellular environment.


| Typical data

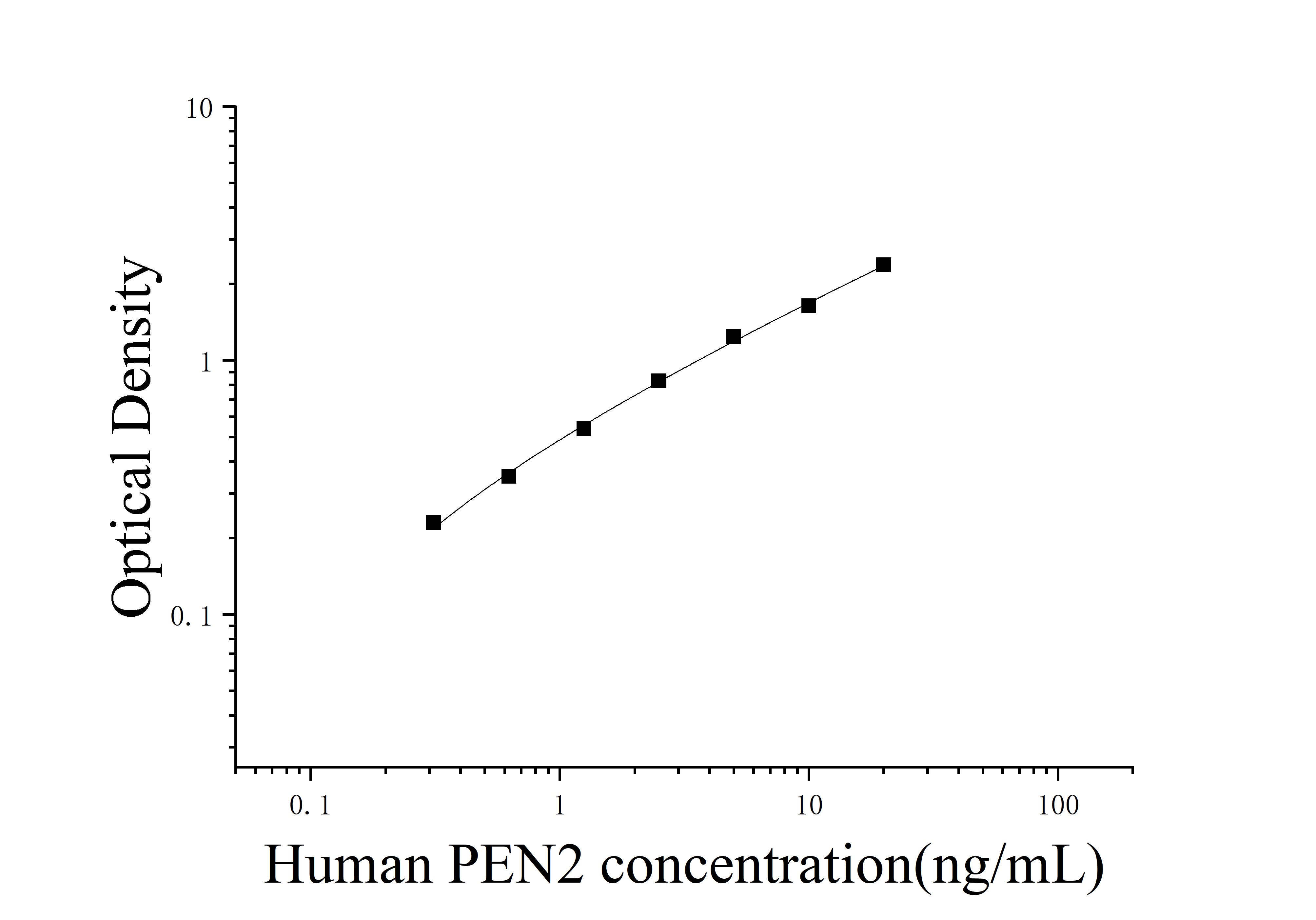

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, wash technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data are provided below for reference only.



Concentration (ng/mL)	20	10	5	2.5	1.25	0.625	0.312	0
OD	2.47	1.73	1.33	0.92	0.63	0.44	0.32	0.09
Corrected OD	2.38	1.64	1.24	0.83	0.54	0.35	0.23	-



| Repeatability

Intra-assay Precision (Precision within an assay)：CV% < 10%; Inter-assay Precision (Precision between assays)：CV% < 10%


| Recovery

The recovery of Human PEN2 spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.



Sample Type	Range(%)	Average Recovery(%)
Serum(n=8)	84-101	96
Plasma(n=8)	92-106	102
Cell Culture Supernates(n=8)	96-108	104



| Linearity

Samples were spiked with high concentrations of Human PEN2 and diluted with Universal Diluent to produce samples with values within the range of the assay.



		Serum(n=4)	Plasma(n=4)	Cell Culture Supernates(n=4)
1 : 2	Range (%)	84-95	88-96	90-110
	Average (%)	91	93	96
1 : 4	Range (%)	89-104	87-108	105-114
	Average (%)	94	98	107
