| HIF1

Oxygen-breathing species express the highly conserved transcriptional complex HIF-1, which is a heterodimer composed of an alpha and a beta subunit, the latter being a constitutively-expressed aryl hydrocarbon receptor nuclear translocator (ARNT).HIF-1 belongs to the PER-ARNT-SIM (PAS) subfamily of the basic helix-loop-helix (bHLH) family of transcription factors. The alpha and beta subunit are similar in structure and both contain the following domains:N-terminus – a bHLH domain for DNA binding,central region – Per-ARNT-Sim (PAS) domain, which facilitates heterodimerization,C-terminus – recruits transcriptional coregulatory proteins.


| Typical data

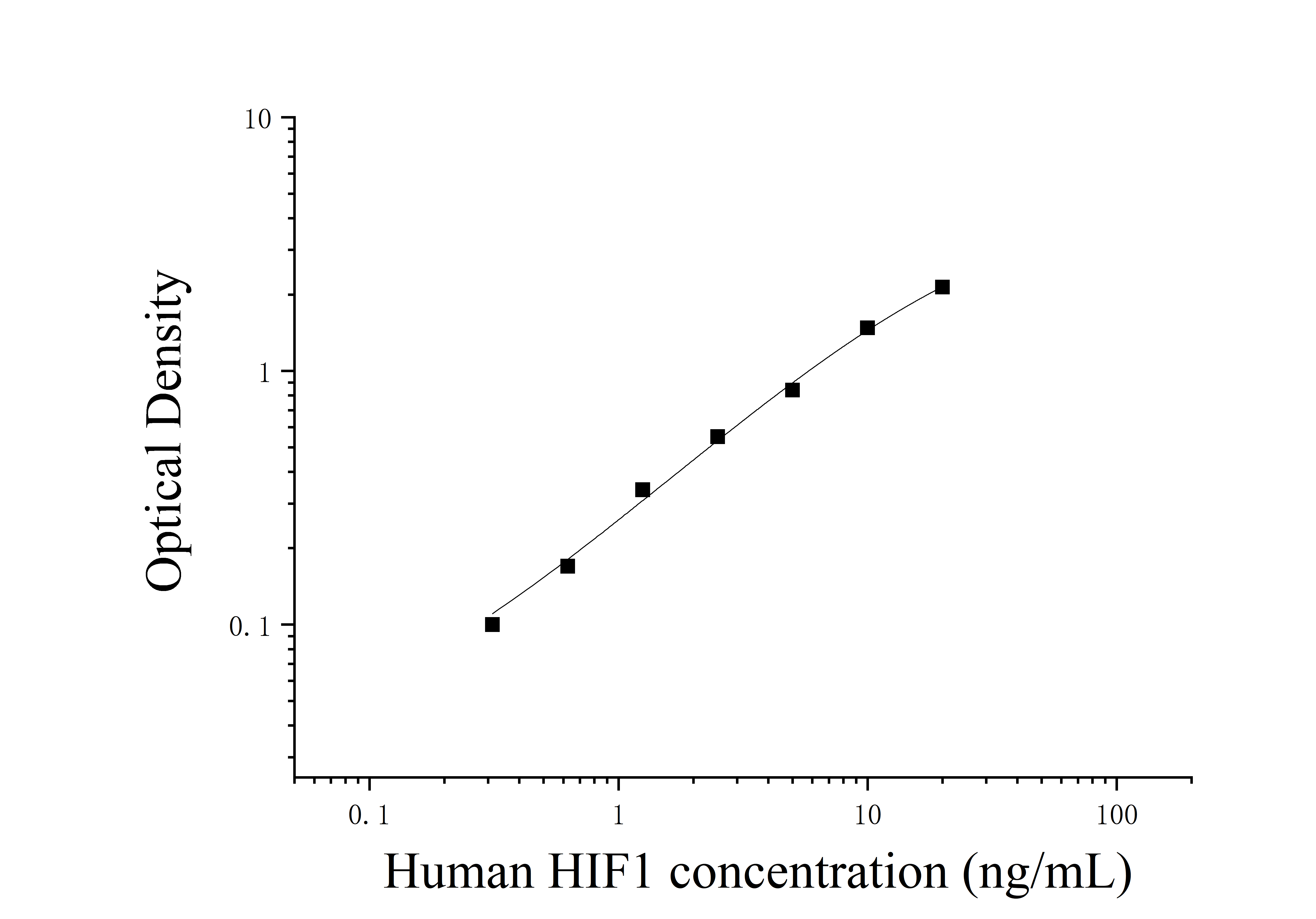

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, wash technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data are provided below for reference only.



Concentration (ng/mL)	20	10	5	2.5	1.25	0.625	0.312	0
OD	2.22	1.56	0.92	0.63	0.42	0.25	0.18	0.08
Corrected OD	2.14	1.48	0.84	0.55	0.34	0.17	0.1	-



| Repeatability

Intra-assay Precision (Precision within an assay)：CV% < 10%; Inter-assay Precision (Precision between assays)：CV% < 10%


| Recovery

The recovery of Human HIF1 spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.



Sample Type	Range(%)	Average Recovery(%)
Serum(n=8)	84-101	95
Plasma(n=8)	92-106	103
Cell Culture Supernates(n=8)	96-108	105



| Linearity

Samples were spiked with high concentrations of Human HIF1 and diluted with Universal Diluent to produce samples with values within the range of the assay.



		Serum(n=4)	Plasma(n=4)	Cell Culture Supernates(n=4)
1 : 2	Range (%)	84-95	88-95	90-110
	Average (%)	91	93	96
1 : 4	Range (%)	89-103	87-108	105-114
	Average (%)	94	97	107
