| sTM

Thrombomodulin (sTM) is an overall membrane protein expressed on the surface of endothelial cells and serves as a cofactor of thrombin. It reduces blood clotting by converting thrombin from prothrombin to antithrombin. Thrombomodulin is also expressed on mesothelial cells, monocytes and dendritic cell subsets. Thrombomodulin is encoded by the THBD gene. The molecular mass of this protein is 74kDa. It consists of a single chain with six tandem repeats of EGF-like structures, a serine/threonine spacer and a transmembrane domain.


| Typical data

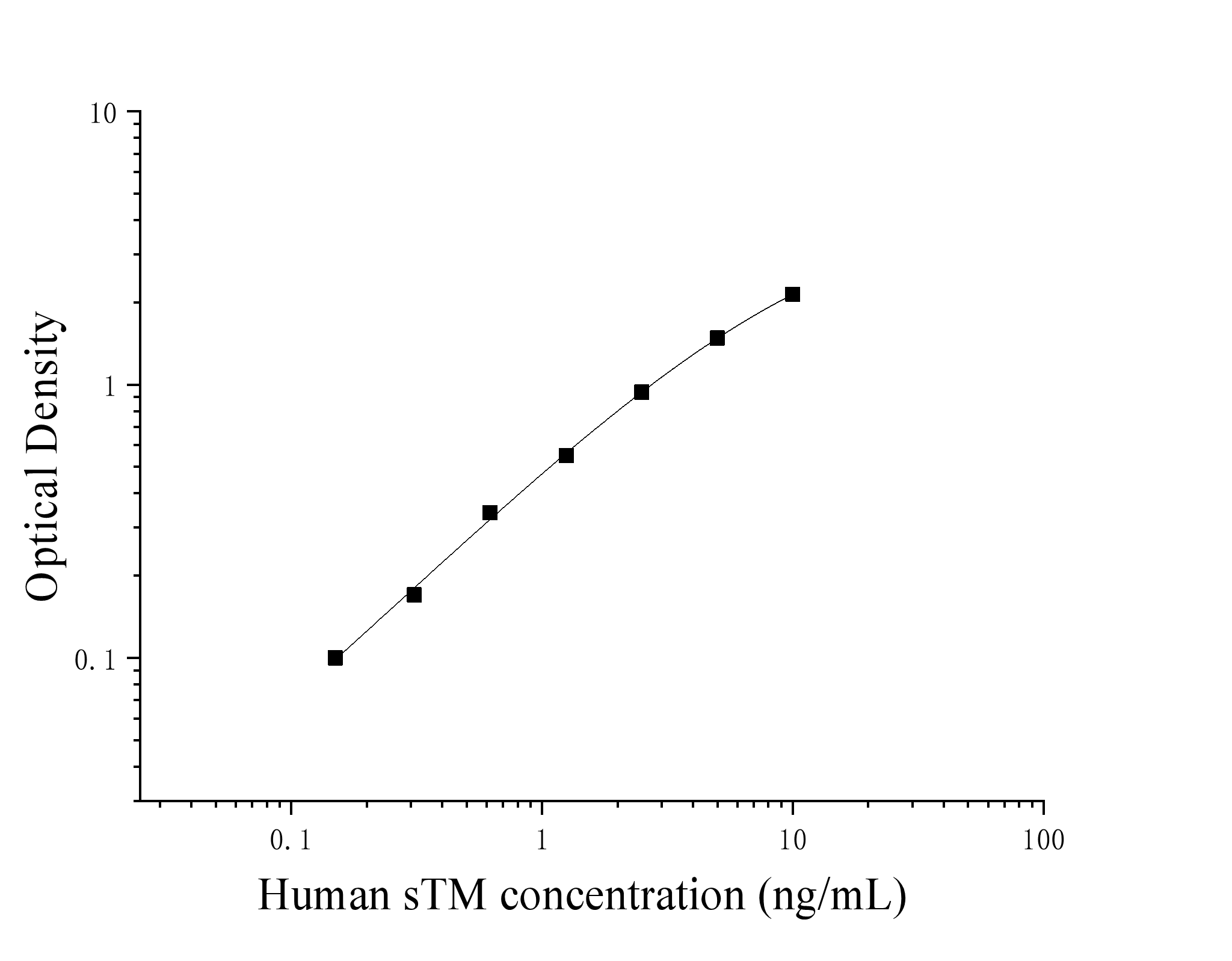

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, wash technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data are provided below for reference only.



Concentration (ng/mL)	10	5	2.5	1.25	0.62	0.31	0.15	0
OD	2.22	1.56	0.92	0.63	0.42	0.25	0.18	0.08
Corrected OD	2.14	1.48	0.84	0.55	0.34	0.17	0.1	-



| Repeatability

Intra-assay Precision (Precision within an assay)：CV% < 10%; Inter-assay Precision (Precision between assays)：CV% < 10%


| Recovery

The recovery of Human sTM spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.



Sample Type	Range(%)	Average Recovery(%)
Plasma(n=8)	92-105	102



| Linearity

Samples were spiked with high concentrations of Human sTM and diluted with Universal Diluent to produce samples with values within the range of the assay.



		Plasma(n=4)
1 : 2	Range (%)	88-96
	Average (%)	93
1 : 4	Range (%)	87-108
	Average (%)	98
