| ARNTL

Basic helix-loop-helix ARNT-like protein 1 or aryl hydrocarbon receptor nuclear translocator-like protein 1 (ARNTL), or brain and muscle ARNT-like 1 is a protein that is encoded by the BMAL1 gene on chromosome 11, region p15.3. It's also known as MOP3, and, less commonly, bHLHe5, BMAL, BMAL1C, JAP3, PASD3, and TIC. BMAL1 encodes a transcription factor with a basic helix-loop-helix (bHLH) and two PAS domains.


| Typical data

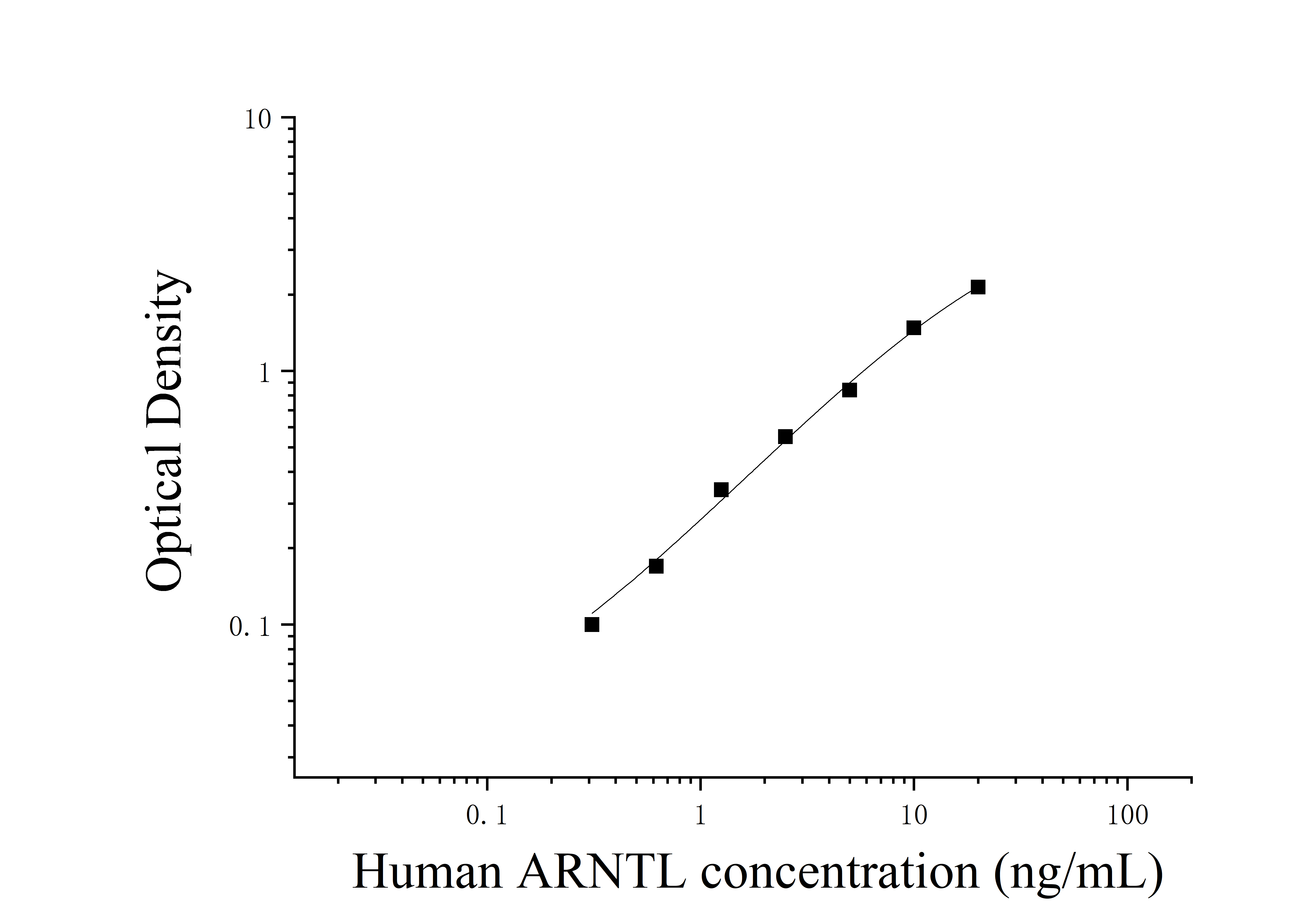

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, wash technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data are provided below for reference only.



Concentration (ng/mL)	20	10	5	2.5	1.25	0.625	0.312	0
OD	2.22	1.56	0.92	0.63	0.42	0.25	0.18	0.01
Corrected OD	2.14	1.48	0.84	0.55	0.34	0.17	0.1	-



| Repeatability

Intra-assay Precision (Precision within an assay)：CV% < 10%; Inter-assay Precision (Precision between assays)：CV% < 10%


| Recovery

The recovery of Human ARNTL spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.



Sample Type	Range(%)	Average Recovery(%)
Tissue Homogenates(n=8)	84-101	96
Cell Lysates(n=8)	92-105	102
Cell Culture Supernates(n=8)	96-108	105



| Linearity

Samples were spiked with high concentrations of Human ARNTL and diluted with Universal Diluent to produce samples with values within the range of the assay.



		Tissue Homogenates(n=4)	Cell Lysates(n=4)	Cell Culture Supernates(n=4)
1 : 2	Range (%)	82-95	88-96	90-110
	Average (%)	91	93	96
1 : 4	Range (%)	89-103	87-108	105-115
	Average (%)	94	98	108
